Floating point value input
From Smart LCD
background
Smart LCD provide VP_N32 can holding a 32bit number value and show as integer or floating point value. Here give an example about how to create a Floating point input with a PIP keyboard.
how to

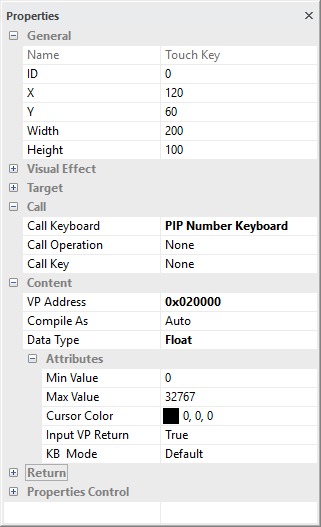

- create a TPK on a screen

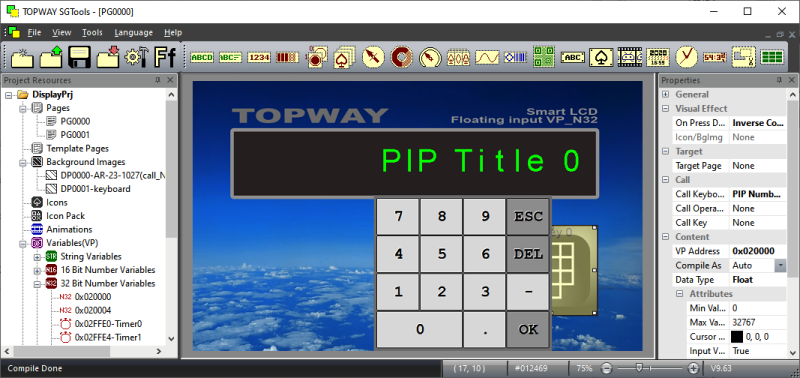

- select Call keyboard function "PIP Number Keyboard"
- VP Address must be a VP_N32 variable
- Data Type select "Float"
e.g.

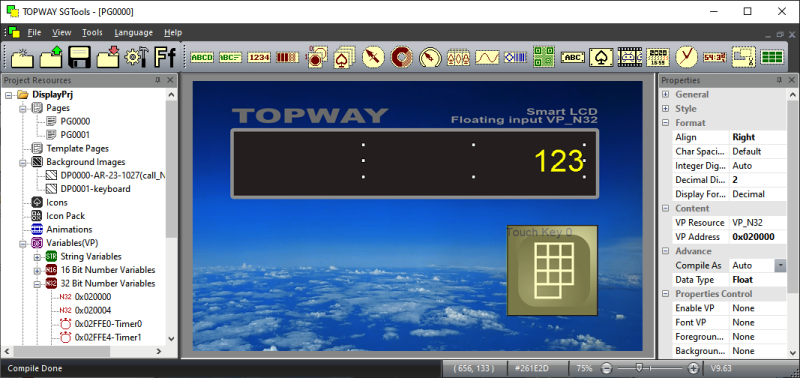

- Using the keyboard input ”806.14“
- VP_N32(Add=0x020000) will store "0x444988f6"
downloads
demo project: SDM-23-0003(FloatInput_N32).zip
