TOPWAY Smart LCD (SLD) provides a display engine with versatile range of TFT display sizes and Touch-Panels to support a wide range of industrial and instrumentation applications.
The pre-loaded User Interface (UI) reduces host system’s workload and provides a much faster interaction with user.
Host data can be displayed in real time with the communication protocols.
UI design is done through TOPWAY SGTools, allowing design with zero coding. It dramatically simplifies and speeds up the whole product design process.
Smart LCD Highlight
Speed Up the Project
Simplify the UI design
Easily realize the Embedded display
Faster work flow – Load and Play
Cut Down the BOM cost
Reduce host MCU workload from display and touch responses
Save cost by using low-tier MCU for the project
Free up memory space by preloading UI into Smart LCD
Increase Reliability
Shorter Hi-Freq display signal path improves EMC performance
All-in-one construction boosts ESD protection level
Robust RS-232C interface for minimal data transfer
Reliable packet protocol ensures dependable communication

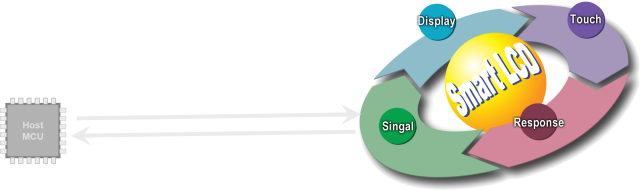

Reduce MCU loading
Host data could be accepted at any moment
Free host from display generation and user input response
Easy to use
Direct connect the USB terminal to PC for development
Optional UI refresh via OTG after product launched
256Mbyte Flash (vary by model) for interface pictures preload (more than 300 pictures(800x480) for example)

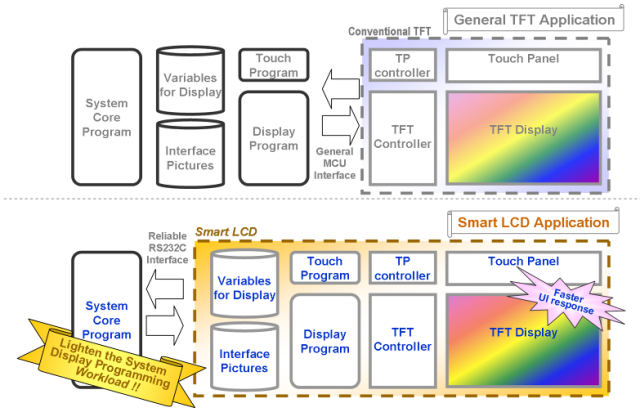

Functional Blocks
SGTools Highlight
Free professional user interface design software
page based UI design
Various kind of touch screen effect available
User friendly work space
Support various languages and fonts
Support font import and fine font adjustment
Only need few minutes to show a UI sample with zero coding
