Graphics Elements
From Smart LCD
Tachometer(TCM) - Hand Mode
General Show the basic information of the element X and Y is the location of element on screen, reference point is element top-left corner Width and Height are in pixels top-left corner of the screen = 0,0
Style Mode options are Hand / Donut Mix Color / Donut Discolor / Icon Rotation / Icon Open / Pseudo Icon Rotation / Pseudo Icon Open Direction options Clockwise / CounterClockwise Start Angle is the angular location of the min value Sweep Angle is the effective angular area that relatively begin form the Start Angle for sensing
Background Marking & Label Enable can generate the meter face details Base Color, Label, Minor Marking can be enable and define at here Label Min Value and Label Max Value is for meter face display only. It show beside the Major Marking
Foreground Hands Type options are Line / Quadrangle / Trangle Hands Color is for the pointer hand color Center Mark Color is color at the center of the meter
Rotation Center Point Rotation Center options are Auto / Advance Rotation Center X, Y define the the rotation reference point
Content VP Resource is the type of VP to be used VP Address is the VP for the operation Min Value is the bottom value that can be shown (value smaller than this value will stop at the min location) Max Value is the top value that can be shown (value larger than this value will stop at the max location)
Properties Control (advance feature) Enable VP is none by default (element operate normally) Select a VP for real time element control. VP value will set to 1 as enable at power-on. It can be disabled (hidden) by a zero value Base Color VP, Hands Color VP, Center Mark Color VP, Major Marking Color VP, Minor Marking Color VP and Label Color VP are none by default (using the above selected color) Select a VP for real time base color adjustment VP value will copy the above selected color at power-on
Hands Type VP, is none by default (using the above selected color) Select a VP for real time base color adjustment VP value will copy the above selected color at power-on
Preview Preview Value is only for displaying text in SGTools environment
Note

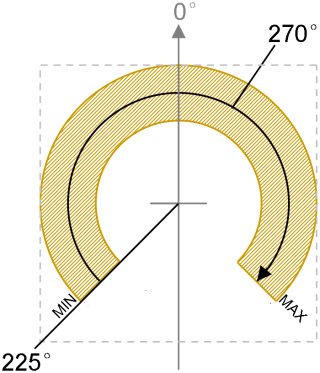

*1. Radius and Angle Definition
Tachometer - Donut Mode (R16, R32)
General Show the basic information of the element X and Y is the location of element on screen, reference point is element top-left corner Width and Height are in pixels top-left corner of the screen = 0,0
Style Mode options are Hand / Donut Mix Color / Donut Discolor / Icon Rotation / Icon Open / Pseudo Icon Rotation / Pseudo Icon Open Direction options Clockwise / CounterClockwise Start Angle is the angular location of the min value Sweep Angle is the effective angular area that relatively begin form the Start Angle for sensing
Background Show Base Color show the Donut shape background even at min value (in Mix Color Mode, Background color is the Gap color) Base Color is the Donut background color (Mix Color Mode, Background color is the Gap color) Internal Radius define the middle hole of the Donut Edge Width can selected as an outline over the Donut
Foreground Step Width is for adjust display Levels color size Gap Width is for adjust the display Levels color gap which show Base Color No.Of Levels 2 for Donut Mix Color Mode show a gradient mix of two color 3-26 for Donut Discolor Mode change the whole donut color w.r.t. VP value
Rotation Center Rotation Center could be Icon Center (auto select) or by manual Rotation Center X, Rotation Center Y define the is the rotation reference point
Content VP Resource is the type of VP hold the content (VP_N16 by default) VP Address is the VP that hold the value Min Value is the minimum tachometer value to be show (value smaller than this value will hide the tachometer) Max Value is the maximum tachometer value to be show (value bigger than this value will hide the tachometer)
Properties Control (advance feature) Enable VP is none by default (element operate normally) Select a VP for real time element control. VP value will set to 1 as enable at power-on. It can be disabled (hidden) by a zero value. Color Array VP is for changing the color for visual effect VP value will copy the above selected Color at power-on.
Preview Preview Value is only for displaying text in SGTools environment
note.
