Revision as of 15:36, 12 February 2025
TOPWAY Smart LCD
TOPWAY Smart LCD embeds a display engine to show pre-loaded user-interface (UI) and displays real time data provided by host via serial interface (RS-232C / RS-485 / UART).
They reduce host system’s workload and provide a much faster interaction with users.
TOPWAY SGTools can dramatically simplify and speed-up the UI design process and realize it in minutes.
Development Flow
| 1. Install SGTools |
|
| 2. Design UI |
|
| 3. Download to Smart LCD |
|
| 4. Power on & display |
|
| 5. Show data form host |
|
Note: selected models support U-drive update, please contact us for details
What is needed
Software
| TOPWAY SGTools for Smart LCD
(Download from topwaydisplay.com) |
.png){kind=icon}
|
| Note:SGTools is an update form previous RGTools |
Hardware

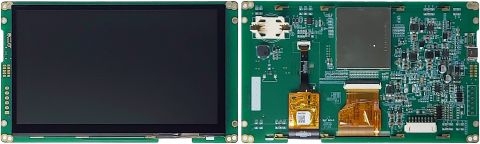

| TOPWAY Smart LCD (HMT070MEE-D as example) |
|
|---|---|

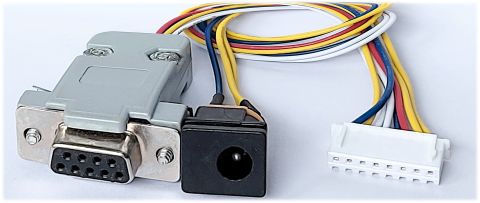

| Connection cable for Power and Signal |
|

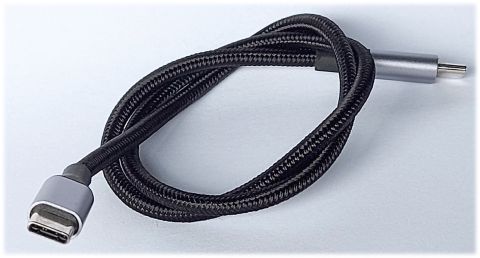

| USB-C cable for project download |
|
| DC Power Supply (12V1A) |
|
| Note:
*1. Power, Signal & USB terminals based on HMT070MEE-D as example. *2. Smart LCD with UART should NOT direct interface with RS-232C host! *3. Please refer to Smart LCD user manual for details |
